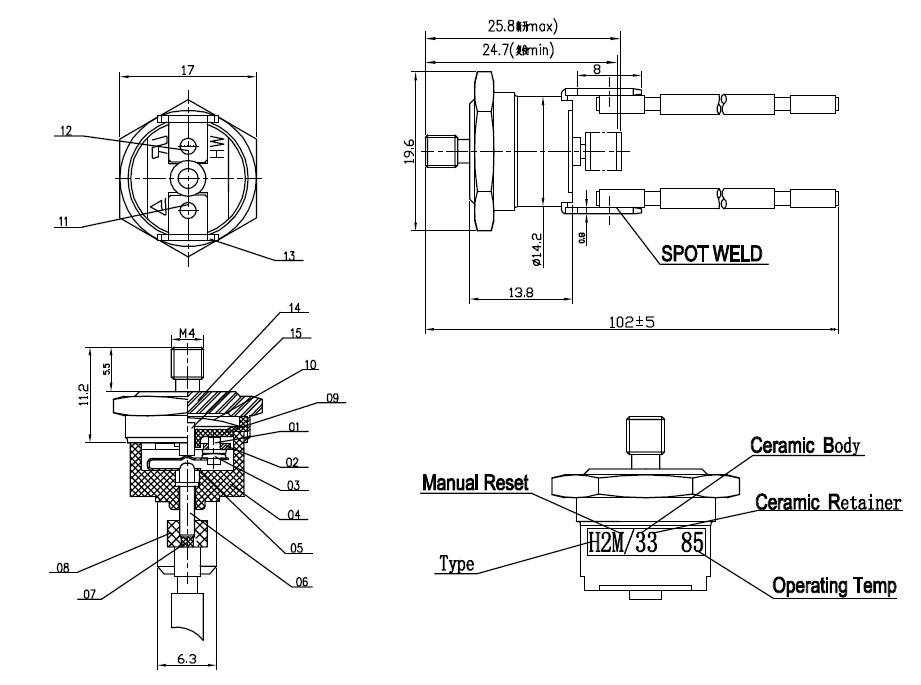

33M-HR2-W
Overview
1) Ceramic body.
(2)CONTACT TYPE :
Contact Opens When Temperature Rises To Set Point
(3) Manual Reset
(4) CAP TYPE : Hexagon brass cap with screw
(5) TERMINAL ORIENTATION : Vertical
(6)With wires.
HW H2 Series –
We can customize this bimetal thermostat according to client’s needs. This snap action temperature switch in three single-pole, single-throw (SPST) switch actions:
Automatic Reset – either open or close its contacts on temperature rise.
Manual Reset – Available with contacts that open on temperature rise. The contacts must be reset by pressing the button after the device cools down.
One shot – Available with contacts that open on temperature rise, and which never reclose unless the ambient temperature drops below -35°C.
For clients who wish to have action temperature above 180°C, we’d recommend our ceramic thermostat H2 series.
Details
Specification:
1.Standards according : GB14536.1-1998 , GB14536.10-1996 , JB/T3751-1997
2.Operation Temp: 16A/125V 45℃~180℃ ; 16A/250V 45℃~180℃
3.Resistance between terminals: below 50 m Ohm at DC5V/0.25A (initial figure).
4.Insulated resistance : above 100M Ohm (DC500V) at charged and non-charged portion.
5.Dielectric strength : AC1500V for 1 second at charged and non-charged portion.
6.Compliance : UL (E192925), TUV (R50155488)
7.For example:
|
Model
|
Off temp.
(C)
|
On.temp.
(C)
|
Contact
state
|
Dielectric
rating
|
|
H2M/33F-85/-/112B43
|
85+/- 5
|
< – 20
|
N.C.
|
250V/~16A
|
