Overview

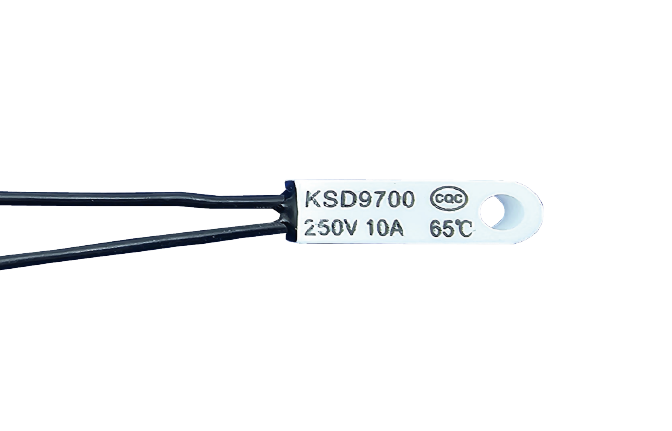

The working principle of KSD9700-LH thermal protector is to use a fixed-temperature bimetallic disc as a sensitive reaction element.
When the temperature or current increases, the heat generated is transferred to the bimetallic disc. When the pre-setting temperature value is reached, it acts quickly to open the contacts and cut off the circuit.
When the temperature drops to the pre-setting reset value, the bimetal disc quickly recovers, closing the contacts and completing the circuit.
The long ceramic shell of this thermal protector can withstand a pressure of more than 40kg/cm2. It has the characteristics of small size, insulated ceramic shell, sensitive action, large contact capacity, long life, and rapid response to overheating and overheating.
Details
Model:KSD9700-LH
Maximum voltage: 250V (V)
Maximum current: 10 (A)
Holding current: 5 (A)
Operating temperature: 55-150 (℃)
Dimension: 30mm (length) x 5mm (thickness) x 9mm (width)
Aperture: 5mm
Open Temp. | Reset Temp. | Open Temp. | Reset Temp. |
60±5℃
|
45±15℃
|
105±5℃
|
70±15℃
|
65±5℃
|
45±10℃
|
110±5℃
|
75±15℃
|
70±5℃
|
45±10℃
|
115±5℃
|
75±15℃
|
75±5℃
|
50±15℃
|
120±5℃
|
80±15℃
|
80±5℃
|
55±15℃
|
125±5℃
|
85±15℃
|
85±5℃
|
55±15℃
|
100±5℃
|
65±15℃
|
90±5℃
|
60±15℃
|
130±5℃
|
95±15℃
|
95±5℃
|
65±15℃
|
150±5℃
|
115±15℃
|
100±5℃
|
65±15℃
|
160±5℃
|
145±15℃
|
Certificate | Voltage | Current | Life cycle |
UL | 250 VAC |
10A
|
>10000
|
VDE
|
24VDC
|
16A | >10000 |
125VAC
|
16A | >10000 | |
CQC |
250VAC
|
10A | >10000 |
