產品介紹

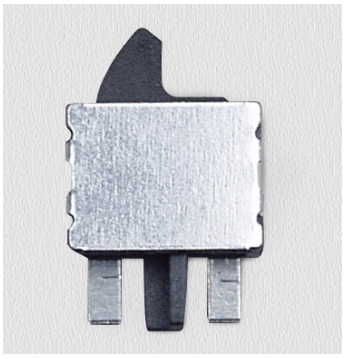

偵測開關-TPS-12NTL
Rating : 5伏直流 / 10毫安培
壽命 : 100,000 次
接觸阻抗小於1歐姆
包裝 : 3,000 pcs / 捲帶包裝
詳細介紹
1.Switch nameDetector Switch.(push switch)
2.Part numberTPS-12NTL
3.RatingDC 3V 50 uA ~ DC 5V 10mA (resistance load)
4.Operating temperature range-20 ~ +70
5. Electrical performance
5.1 Contact resistanceLess than 1 with knob pushed 2.3mm inside.
5.2 Insulation resistance : More than 100 M at 100 VDC.
5.3 Withstanding voltage : 100VAC, 1 minute.
2.Part numberTPS-12NTL
3.RatingDC 3V 50 uA ~ DC 5V 10mA (resistance load)
4.Operating temperature range-20 ~ +70
5. Electrical performance
5.1 Contact resistanceLess than 1 with knob pushed 2.3mm inside.
5.2 Insulation resistance : More than 100 M at 100 VDC.
5.3 Withstanding voltage : 100VAC, 1 minute.
